Making the API Calls

note

If you have already been upgraded to Technology Intelligence Platform, information in this section is applicable to you. This section provides guidance about the use of the Contextual Data Store API to augment your organization’s inventory data with non-discoverable business context data you provide.

The following is a high-level overview. Click any step for more details.

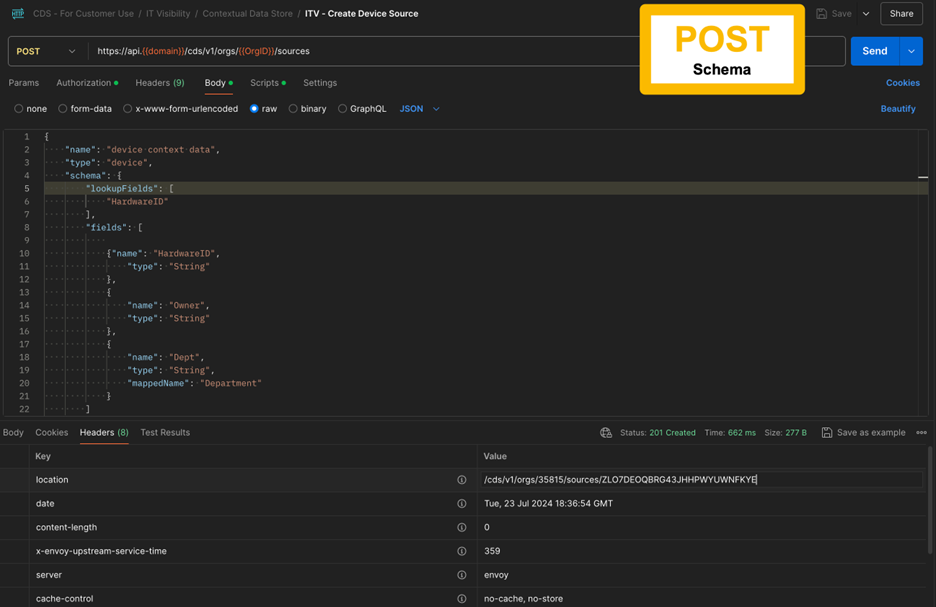

Step 1 (Call): Create the Schema​

The schema will represent the headers of your CSV file upload and indicate the type of mashup you will be performing.

For example:

Schema

{ "name": "Software_Mashup_Name", "type": "software", "schema": { "fields": [ { "name": "TechnopediaGUID", "type": "String"}, { "name": "Owner", "type": "String"}, { "name": "Priority", "type": "String" } ], "LookupFields": [ "TechnopediaGUID" ] }, }

Step 1 (Response): Collect API Location Response​

Collect the Response Header “Location” and save the value as [Source URL] for the next step.

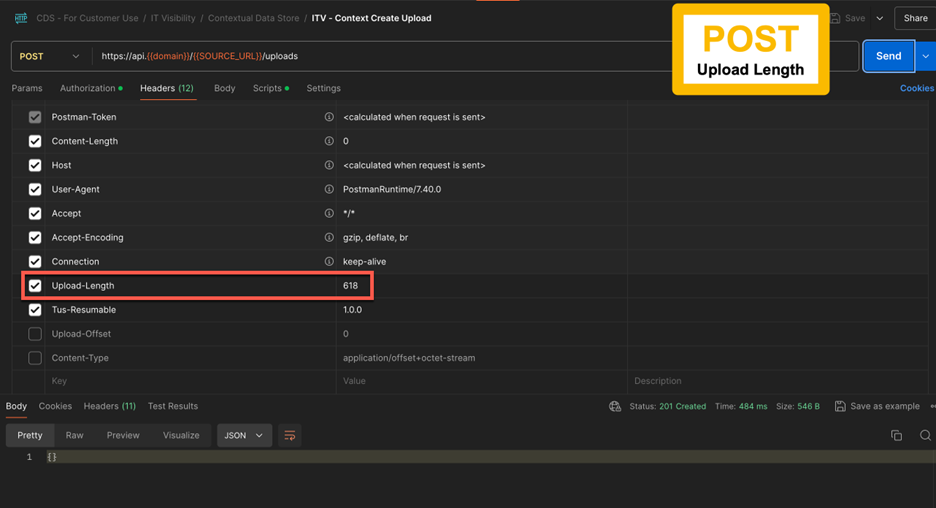

Step 2 (Call): Upload the File Size​

When uploading to the Contextual Data Store, each new upload to a source should be staged before the upload. In the event that the data does not all get uploaded, a log of where data stopped uploading can be produced as part of an error report.

For example:

  • API call type—POST

  • URL—https://api.flexera.com/cds/v1/orgs/`[Org ID]/sources/[Source URL]`/uploads

  • Header-Upload-Length—[length of the file in bytes]

  • Header-Tus-Resumable—1.0.0

  • Header-Authorization-Bearer—[User Access Token]

Step 2 (Response): Collect API Location Response​

Collect the Response Header “Location” and save the value as [Upload URL] for the next step.

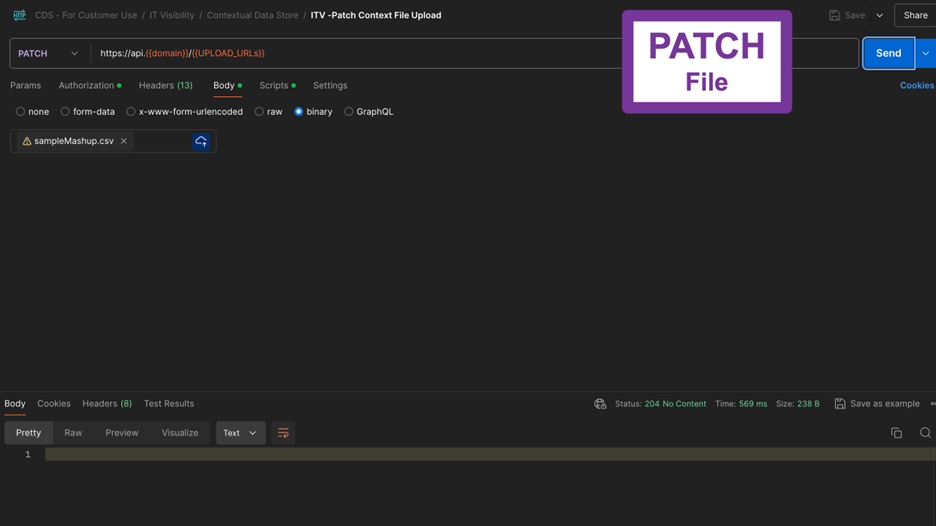

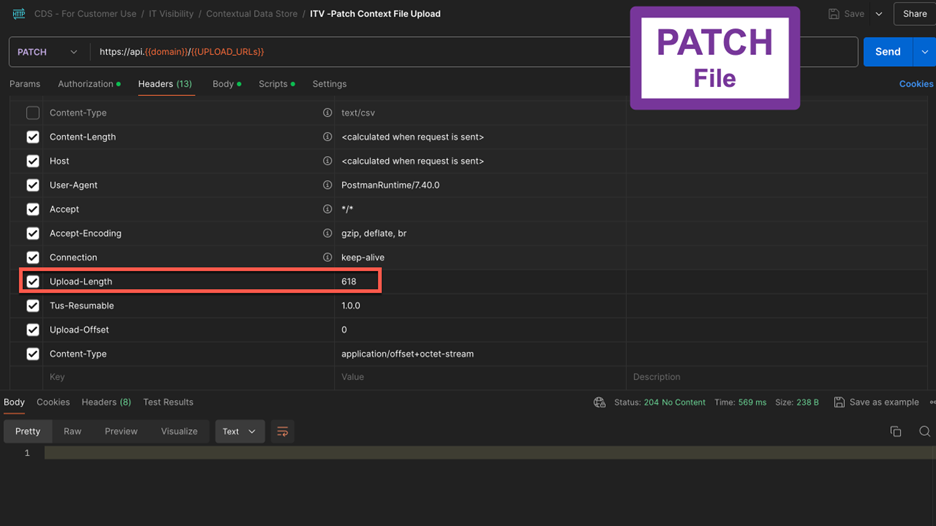

Step 3: Patch the File​

The contextual file will be uploaded using a PATCH call. The return of this call should be a 204 No Content, if successful.

  • API call type—PATCH

  • URL—https://api.flexera.com/cds/v1/orgs/`[Org ID]/sources/[Source URL]/uploads /[Upload URL]`

  • Header-Upload-Length—[length of the file in bytes]

  • Header-Tus-Resumable—1.0.0

  • Header-Authorization-Bearer—[User Access Token]
